QuantDinger

Next-Gen AI Quantitative Trading Platform

🤖 AI-Native · 🐍 Visual Python · 🌍 Multi-Market · 🔒 Privacy-First

Build, Backtest, and Trade with an AI Co-Pilot. Better than PineScript, Smarter than SaaS.

Official Community · Live Demo · 📺 Video Demo · 🌟 Join Us

---

📑 Table of Contents

• 🚀 Quick Start (2 Minutes)
• 📖 Introduction
• 📸 Visual Tour
• ✨ Key Features
• 🔌 Supported Exchanges & Brokers
• 🏗️ Architecture & Configuration
• 📚 Documentation Index
• 💼 License & Commercial
• 🤝 Community & Support

---

🚀 Quick Start (2 Minutes)

Only need: Docker installed. Nothing else.

# 1. Clone
git clone https://github.com/brokermr810/QuantDinger.git
cd QuantDinger

# 2. Configure (edit admin password & AI API key)
cp backend_api_python/env.example backend_api_python/.env

# 3. Launch!
docker-compose up -d --build

Windows PowerShell: use Copy-Item backend_api_python\env.example -Destination backend_api_python\.env

🎉 Done! Open http://localhost:8888 | Login: quantdinger / 123456

📝 Key settings in backend_api_python/.env

# Required — Change for production!
ADMIN_USER=quantdinger
ADMIN_PASSWORD=your_secure_password
SECRET_KEY=your_random_secret_key

# Optional — Enable AI features (pick one)
OPENROUTER_API_KEY=your_key        # Recommended: 100+ models
OPENAI_API_KEY=your_key            # GPT-4o
DEEPSEEK_API_KEY=your_key          # Cost-effective
GOOGLE_GEMINI_API_KEY=your_key     # Gemini

🔧 Common Docker Commands

docker-compose ps                  # View service status
docker-compose logs -f backend     # View backend logs (real-time)
docker-compose restart backend     # Restart backend only
docker-compose up -d --build       # Rebuild & restart all
docker-compose down                # Stop all services

Update to latest version:

git pull && docker-compose up -d --build

Backup & Restore database:

docker exec quantdinger-db pg_dump -U quantdinger quantdinger > backup.sql
cat backup.sql | docker exec -i quantdinger-db psql -U quantdinger quantdinger

Custom port — create .env in project root:

FRONTEND_PORT=3000          # Default: 8888
BACKEND_PORT=127.0.0.1:5001 # Default: 5000

---

📖 Introduction

QuantDinger is a self-hosted, privacy-first AI quantitative trading platform. Your strategies, API keys, and trading data stay on your own machine — not in someone else's cloud.

🔒 Privacy-First	Your API keys, strategies, and data never leave your server
🐍 Python-Native	Write indicators in Python, visualize on K-line charts with AI assistance
🤖 AI Co-Pilot	Multi-agent analysis, backtest optimization, trading radar
🌍 Multi-Market	Crypto (10+ exchanges), US Stocks (IBKR), Forex (MT5)
💳 Monetization-Ready	Membership, credits, USDT on-chain payment — all built-in
⚡ One-Click Deploy	docker-compose up -d — production-ready in 2 minutes

---

📺 Video Demo

▶️ Click to watch the full project introduction

---

📸 Visual Tour

🗺️ System Architecture Overview

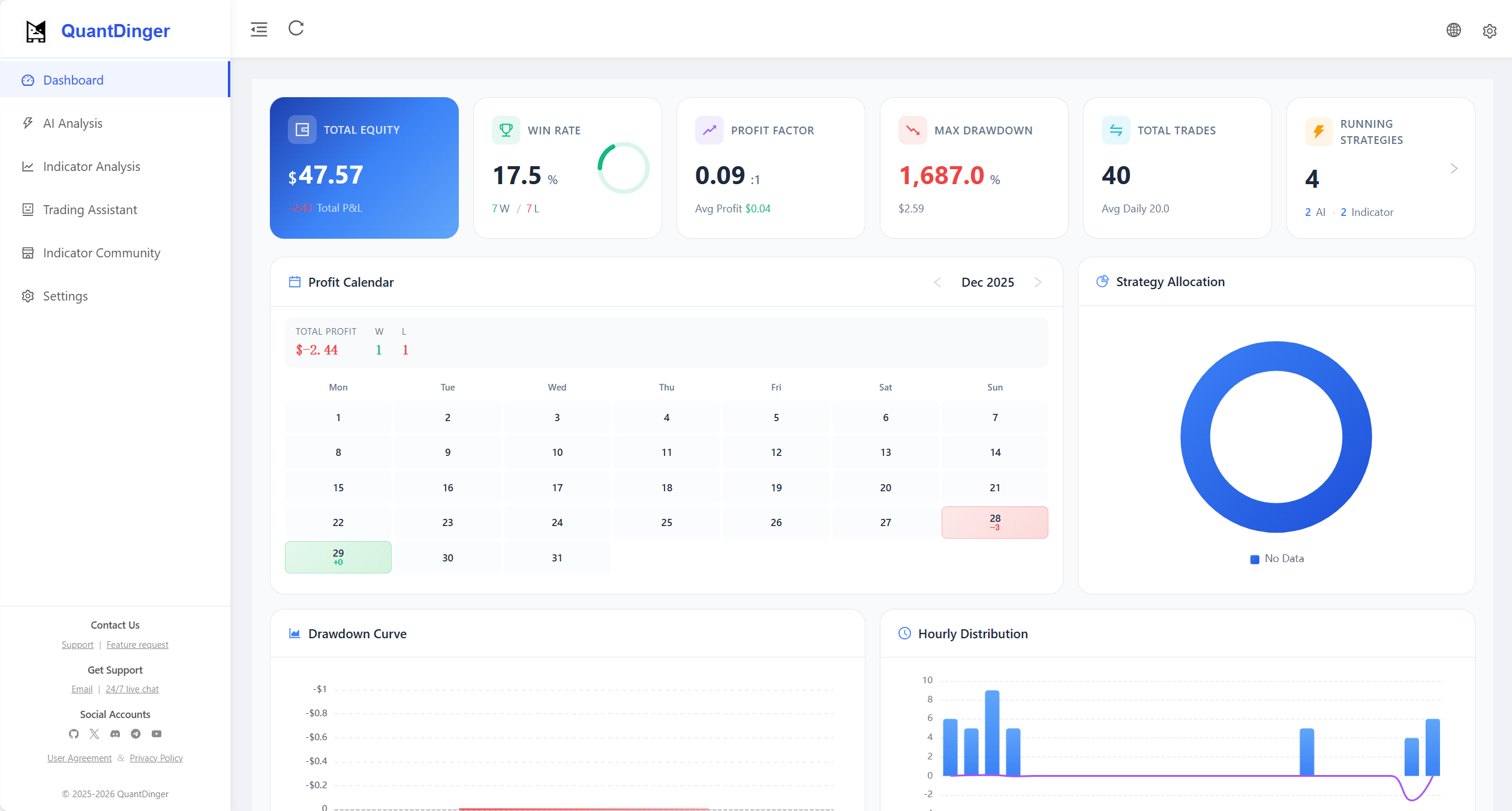

📊 Professional Quant Dashboard

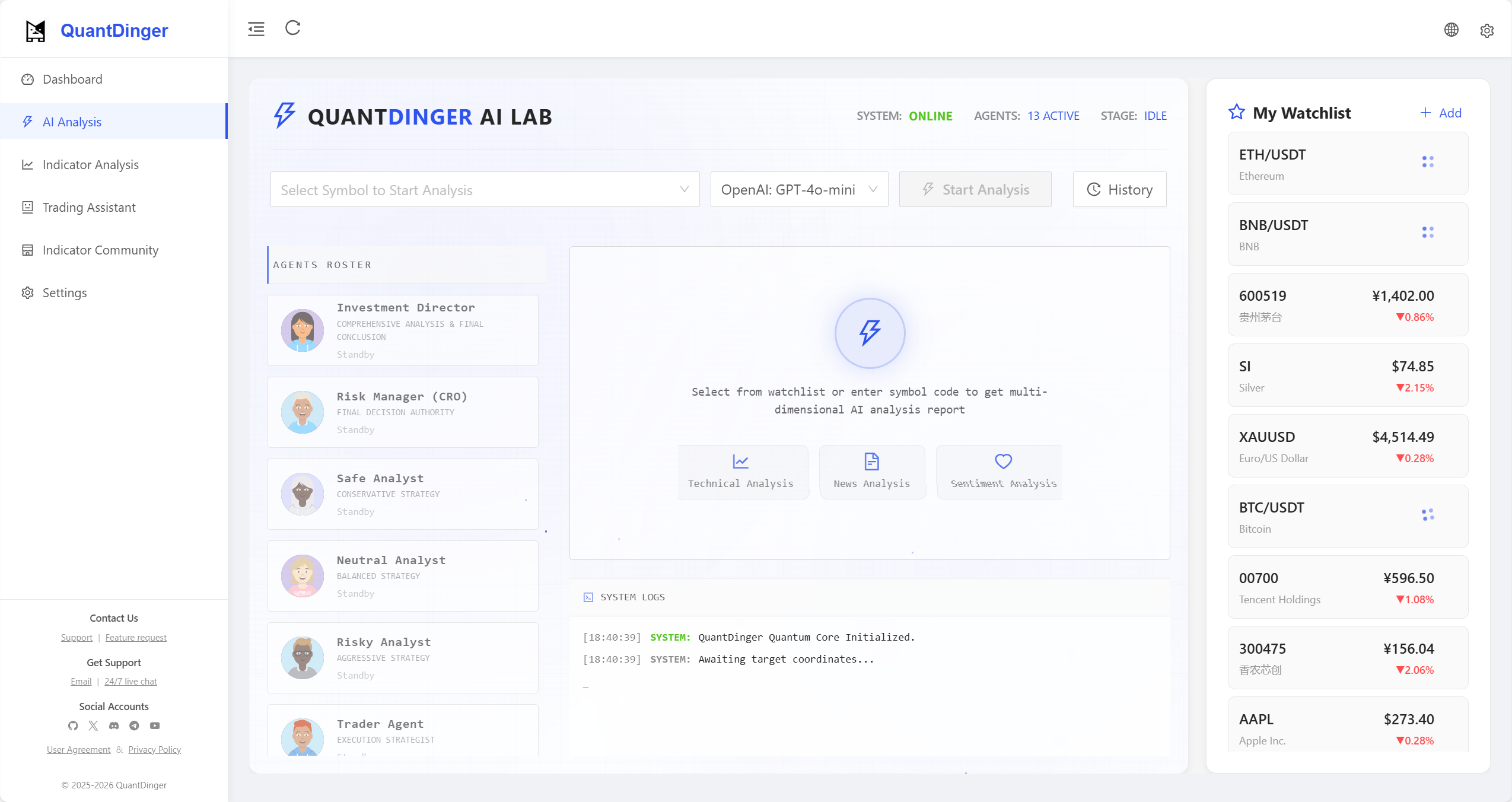

🤖 AI Deep Research Multi-agent market sentiment & technical analysis	💬 Smart Trading Assistant Natural language interface for market insights

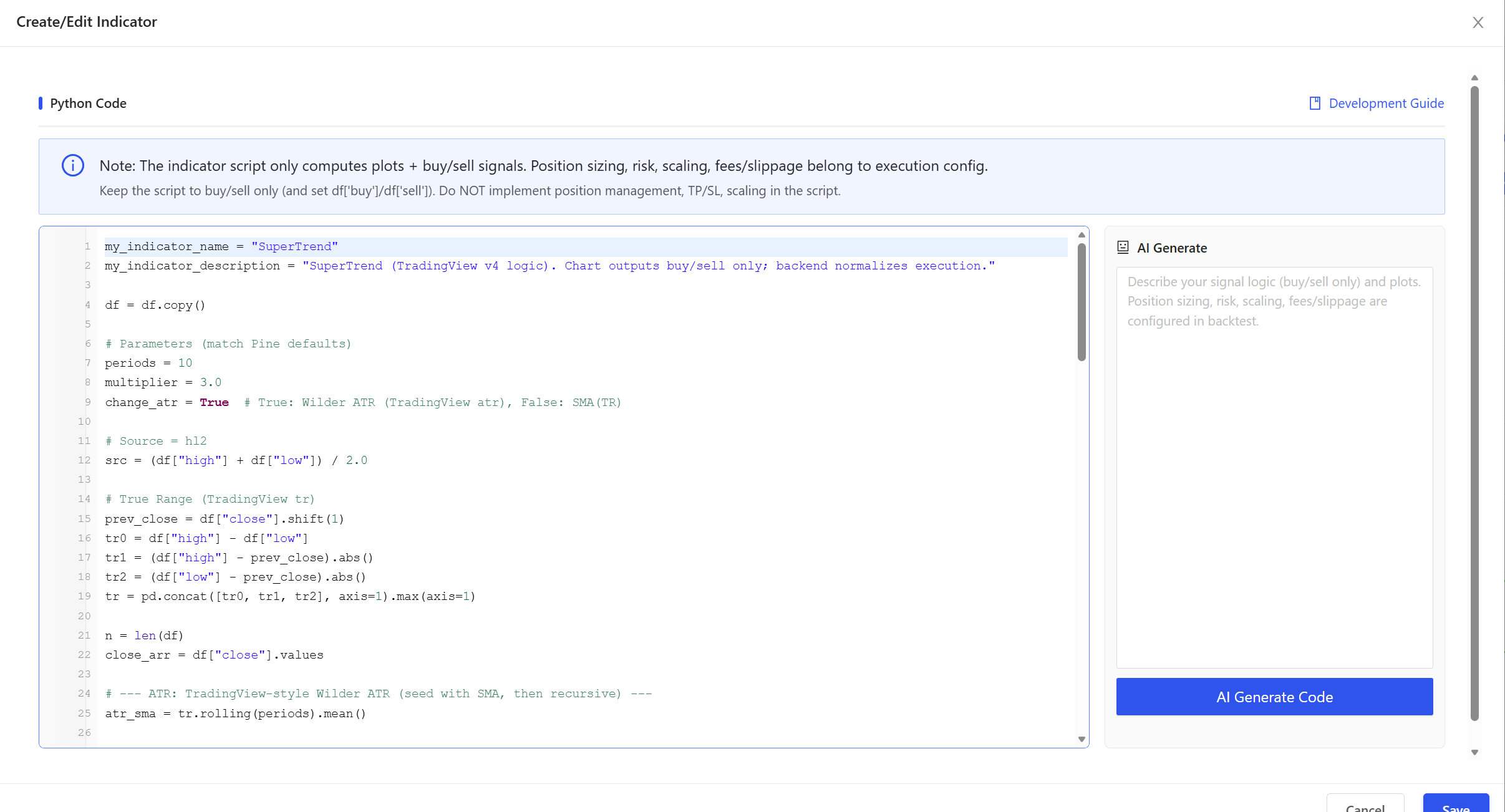

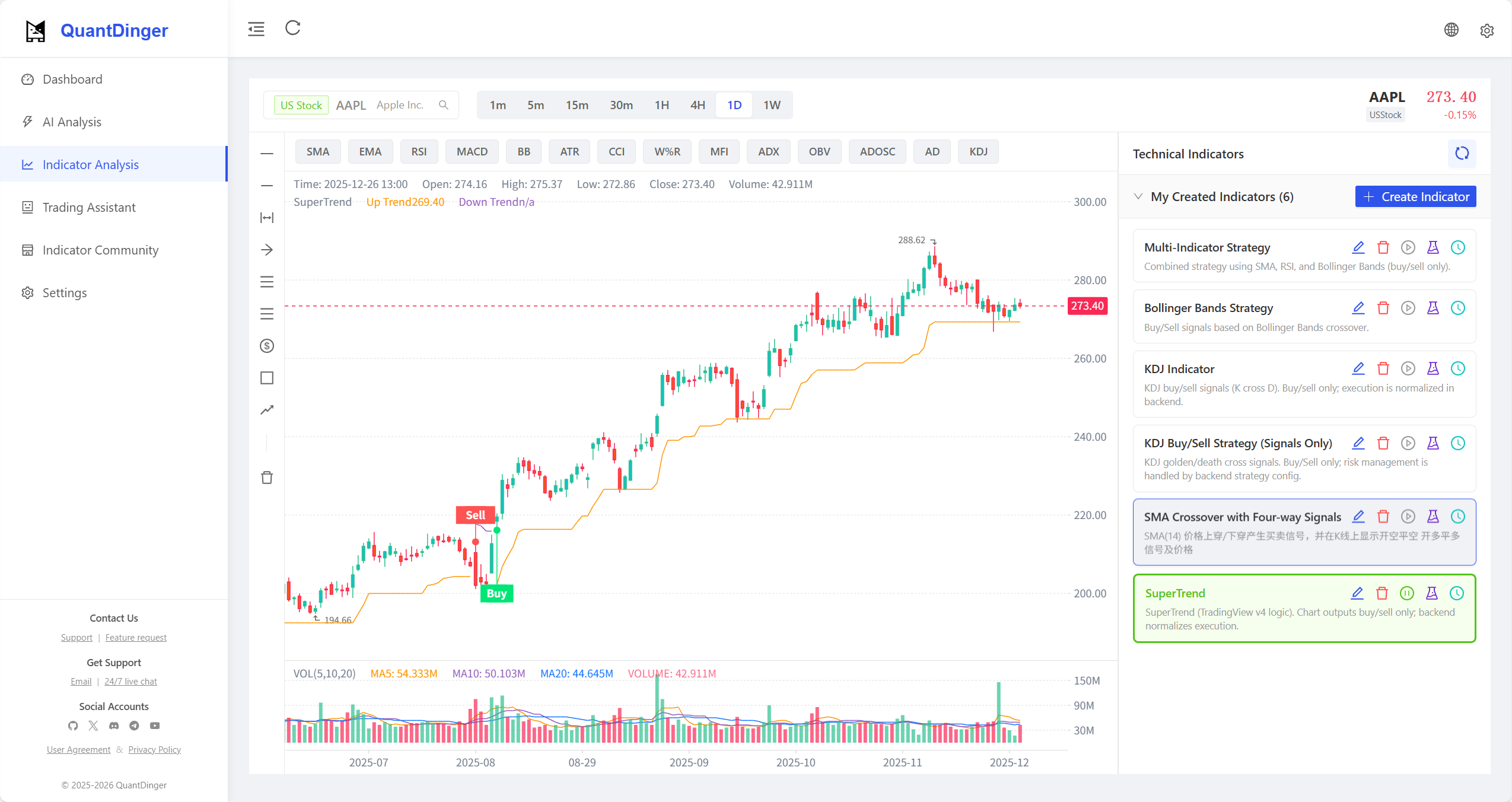

📈 Indicator Analysis Technical indicators with drag-and-drop	🐍 AI Strategy Coding AI-assisted Python strategy generation
📊 Portfolio Monitor Track positions, set alerts, AI-powered analysis via Email/Telegram

---

✨ Key Features

🐍 Visual Python Strategy Workbench

Write indicators in Python (not PineScript), run them on built-in K-line charts, and let AI write the complex logic for you. Full Python ecosystem: Pandas, Numpy, TA-Lib.

📈 Complete Trading Lifecycle

Indicator → Strategy → Backtest → AI Optimize → Live Trade / Signal Notify

• Simplified strategy creation with smart defaults (15min K-line, 5x leverage, market order)
• AI analyzes backtest results and suggests parameter improvements
• Live trading on Crypto (10+ exchanges), US Stocks (IBKR), Forex (MT5)
• Signal notifications via Telegram, Discord, Email, SMS, Webhook

🤖 AI-Powered Analysis

• Multi-Agent Analysis: 5 parallel analysts + bull/bear debate + final trading decision
• AI Trading Radar: Auto-scans Crypto/Stocks/Forex markets hourly
• Quick Trade Panel (⚡): One-click trade from any analysis signal
• Memory-Augmented: RAG-style local memory — agents learn from past analyses

💳 Built-in Monetization

• Membership Plans: Monthly / Yearly / Lifetime with credits
• USDT On-Chain Payment: TRC20 scan-to-pay, HD Wallet address derivation, auto-reconciliation
• Indicator Marketplace: Publish, buy, and sell Python indicators with credits

🔐 User Management & Security

• Multi-user with PostgreSQL, role-based permissions
• Google & GitHub OAuth, email verification
• Cloudflare Turnstile captcha, rate limiting, demo mode

🧠 Multi-LLM Support

Provider	Models
OpenRouter	100+ models (recommended)
OpenAI	GPT-4o, GPT-4o-mini
Google Gemini	Gemini 1.5 Flash/Pro
DeepSeek	DeepSeek Chat
xAI Grok	Grok Beta

🔄 Memory-Augmented Agent Architecture (Click to expand)

flowchart TB
    subgraph Entry["🌐 API Entry"]
        A["📡 POST /api/analysis/multi"]
        A2["🔄 POST /api/analysis/reflect"]
    end
    subgraph Service["⚙️ Service Orchestration"]
        B[AnalysisService]
        C[AgentCoordinator]
        D["📊 Build Context<br/>price · kline · news · indicators"]
    end
    subgraph Agents["🤖 Multi-Agent Workflow"]
        subgraph P1["📈 Phase 1 · Analysis (Parallel)"]
            E1["🔍 MarketAnalyst"]
            E2["📑 FundamentalAnalyst"]
            E3["📰 NewsAnalyst"]
            E4["💭 SentimentAnalyst"]
            E5["⚠️ RiskAnalyst"]
        end
        subgraph P2["🎯 Phase 2 · Debate"]
            F1["🐂 BullResearcher"]
            F2["🐻 BearResearcher"]
        end
        subgraph P3["💹 Phase 3 · Decision"]
            G["🎰 TraderAgent → BUY / SELL / HOLD"]
        end
    end
    subgraph Memory["🧠 PostgreSQL Memory Store"]
        M1[("agent memories")]
    end
    subgraph Reflect["🔄 Reflection Loop"]
        R[ReflectionService]
        W["⏰ ReflectionWorker"]
    end
    A --> B --> C --> D
    D --> P1 --> P2 --> P3
    Agents <-.-> M1
    C --> R
    W -.->|"verify + learn"| M1

---

🔌 Supported Exchanges & Brokers

Cryptocurrency (Direct API Trading)

Exchange	Markets
Binance	Spot, Futures, Margin
OKX	Spot, Perpetual, Options
Bitget	Spot, Futures, Copy Trading
Bybit	Spot, Linear Futures
Coinbase	Spot
Kraken	Spot, Futures
KuCoin	Spot, Futures
Gate.io	Spot, Futures
Bitfinex	Spot, Derivatives

Traditional Brokers & Markets

Market	Broker/Source	Trading
US Stocks	Interactive Brokers (IBKR), Yahoo Finance, Finnhub	✅ Via IBKR
Forex	MetaTrader 5 (MT5), OANDA	✅ Via MT5
Futures	Exchange APIs	⚡ Data + Notify

---

🏗️ Architecture & Configuration

┌─────────────────────────────────────┐
│         Docker Compose              │
│                                     │
│  ┌───────────────────────────────┐  │
│  │  frontend (Nginx)  → :8888   │  │
│  └──────────────┬────────────────┘  │
│                 │ /api/* proxy       │
│  ┌──────────────▼────────────────┐  │
│  │  backend (Flask)   → :5000   │  │
│  └──────────────┬────────────────┘  │
│  ┌──────────────▼────────────────┐  │
│  │  postgres (PG 16)  → :5432   │  │
│  └───────────────────────────────┘  │
│                                     │
│  External: LLM APIs · Exchanges ·   │
│  TronGrid · Data providers          │
└─────────────────────────────────────┘

Repository Layout

QuantDinger/
├── backend_api_python/          # 🐍 Backend (Open Source, Apache 2.0)
│   ├── app/routes/              #   API endpoints
│   ├── app/services/            #   Business logic (AI, trading, payment)
│   ├── migrations/init.sql      #   Database schema
│   ├── env.example              #   ⚙️ Config template → copy to .env
│   └── Dockerfile
├── frontend/                    # 🎨 Frontend (Pre-built)
│   ├── dist/                    #   Static files (HTML/JS/CSS)
│   ├── Dockerfile               #   Nginx image
│   └── nginx.conf               #   SPA routing + API proxy
├── docs/                        # 📚 Guides & tutorials
├── docker-compose.yml           # 🐳 One-click deployment
└── LICENSE                      # Apache 2.0

⚙️ Configuration Reference (.env)

Use backend_api_python/env.example as template:

Category	Key Variables
Auth	SECRET_KEY, ADMIN_USER, ADMIN_PASSWORD
Database	DATABASE_URL (PostgreSQL connection string)
AI / LLM	LLM_PROVIDER, OPENROUTER_API_KEY, OPENAI_API_KEY
OAuth	GOOGLE_CLIENT_ID, GITHUB_CLIENT_ID
Security	TURNSTILE_SITE_KEY, ENABLE_REGISTRATION
Membership	MEMBERSHIP_MONTHLY_PRICE_USD, MEMBERSHIP_MONTHLY_CREDITS
USDT Payment	USDT_PAY_ENABLED, USDT_TRC20_XPUB, TRONGRID_API_KEY
Proxy	PROXY_PORT or PROXY_URL
Workers	ENABLE_PENDING_ORDER_WORKER, ENABLE_PORTFOLIO_MONITOR

🔌 API Endpoints

Endpoint	Description
GET /api/health	Health check
POST /api/user/login	User authentication
GET /api/user/info	Current user info
GET /api/billing/plans	Membership plans
POST /api/billing/usdt/create-order	Create USDT payment order

For the full route list, see backend_api_python/app/routes/.

---

📚 Documentation Index

All detailed guides are in the docs/ folder:

Getting Started

Document	Description
Changelog	Version history & migration notes
Multi-User Setup	PostgreSQL multi-user deployment

Strategy Development

Guide	🇺🇸 EN	🇨🇳 CN	🇹🇼 TW	🇯🇵 JA	🇰🇷 KO
Strategy Dev	EN	CN	TW	JA	KO
Cross-Sectional	EN	CN
Code Examples	examples/

Broker & Integration

Guide	English	中文
IBKR (US Stocks)	Guide	—
MT5 (Forex)	Guide	指南
OAuth (Google/GitHub)	Guide	指南

Notifications

Channel	English	中文
Telegram	Setup	配置
Email (SMTP)	Setup	配置
SMS (Twilio)	Setup	配置

---

💼 License & Commercial

Open Source License

Backend source code is licensed under Apache License 2.0. See LICENSE.

The frontend UI is provided as pre-built files. Trademark rights (name/logo/branding) are governed separately — see TRADEMARKS.md.

🎓 Free Source Code for Non-Profit & Education

If you are a university, research institution, non-profit, community group, or educational program, you can apply for free authorization and full frontend source code:

• 🏫 Universities & academic research
• 🌍 Open-source communities & developer groups
• 🤝 Non-profit & public welfare organizations
• 📚 Educational programs & student hackathons

💼 Commercial License

For commercial use, purchase a license to get:

• Full frontend source code + future updates
• Branding authorization — modify name/logo/copyright as agreed
• Operations support — deployment, upgrades, incident response
• Consulting — architecture review, performance tuning

📬 Contact

Channel	Link
Telegram	t.me/worldinbroker
Email	brokermr810@gmail.com

---

🤝 Community & Support

• Contributing Guide · Contributors
• Report Bugs / Request Features
• Email: brokermr810@gmail.com

---

💝 Support the Project

Crypto Donations (ERC-20 / BEP-20 / Polygon / Arbitrum)

0x96fa4962181bea077f8c7240efe46afbe73641a7

---

🎓 Supporting Partners

Quantitative Finance Society (QFS) Indiana University Bloomington

💡 Want to become a partner? Contact brokermr810@gmail.com or Telegram.

---

Acknowledgements

Project	Link
Flask	flask.palletsprojects.com
Pandas	pandas.pydata.org
CCXT	github.com/ccxt/ccxt
yfinance	github.com/ranaroussi/yfinance
Vue.js	vuejs.org
Ant Design Vue	antdv.com
KlineCharts	github.com/klinecharts/KLineChart
ECharts	echarts.apache.org

Thanks to all maintainers and contributors! ❤️
